Strengthen Your Project with Soil Nails
Summary
Soil nails are a proven, versatile solution for stabilizing slopes and excavations. At Williams Form Engineering, our high-quality soil nail systems—featuring Grade 75/80 and 150 KSI all‑thread bars or Geo‑Drill hollow injection anchors—offer unmatched durability, design flexibility, and corrosion protection. Ideal for both permanent and temporary earth-retention needs, our soil nails help contractors complete secure, efficient, and cost-effective projects.
What Are Soil Nails?

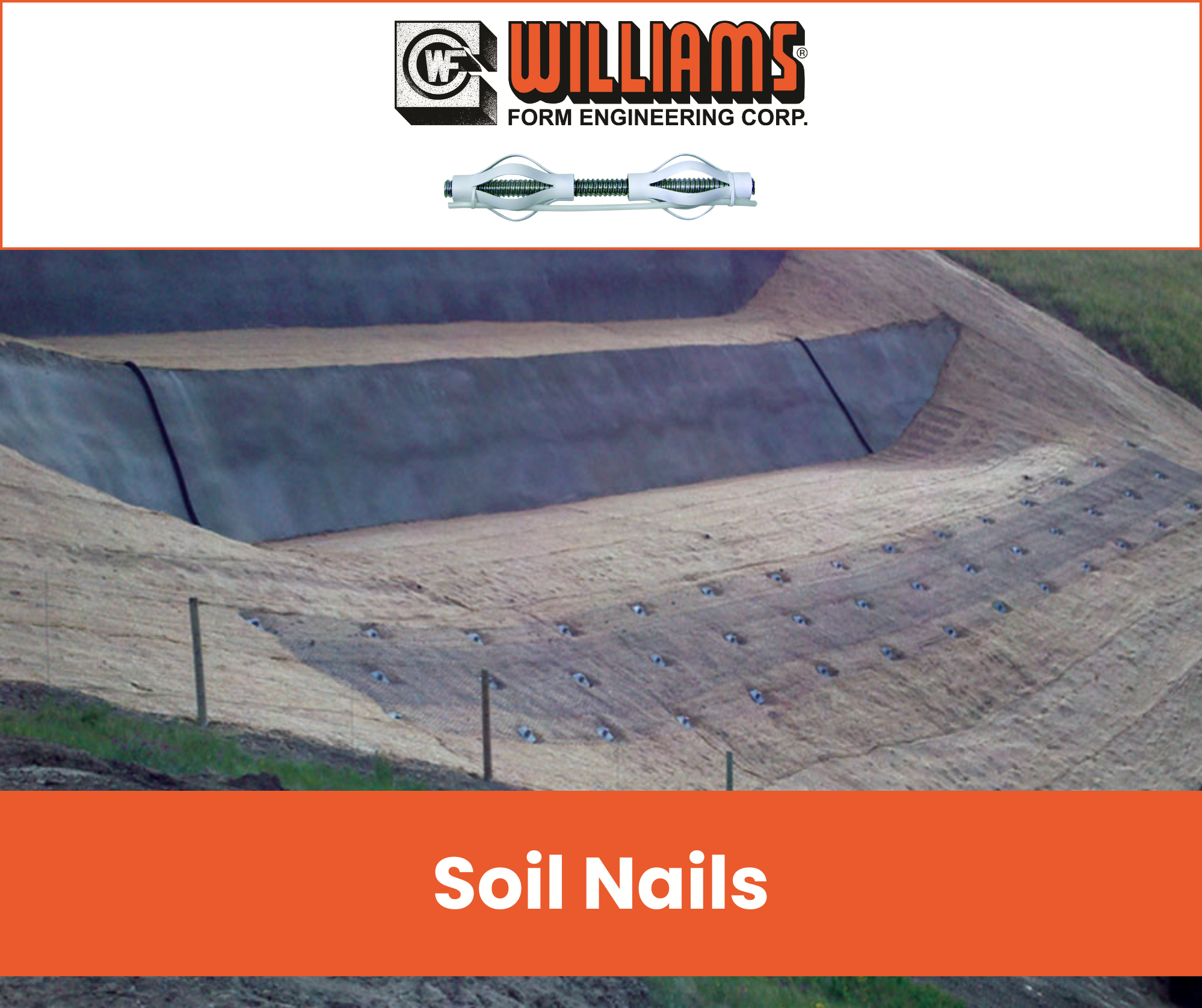

Soil nails are steel bars inserted into slopes or excavations, then grouted in place to reinforce and stabilize the soil mass. Installed top-down, they work in coordination with the soil and often a shotcrete facing to form a composite structural system. Installation options include:
- Solid all‑thread bar: drilled in oversized holes then grouted.
- Geo‑Drill hollow injection bar: self-drilling and grouted simultaneously.
Key Features & Benefits
| FEATURE | BENEFIT |
| High‑strength threaded bar (Grade 75/80, 150 KSI) | Delivers superior load capacity and durability. |
| 360° concentric threading | Promotes excellent grout bonding and soil-bar interaction. |
| Mechanical couplers | Ensure full tensile capacity in connections. |
| Corrosion protection | Options like epoxy, galvanizing, sacrificial steel, grout, or multi‑barrier systems protect temporary and permanent installations. |
| Geo‑Drill hollow injection | Enables fast, single-step drilling and grouting — ideal for granular or unstable soils. |
| Compact equipment | Suits tight or urban worksites without requiring heavy machinery. |
Contractor Advantages:
- Cost-efficiency & speed: Faster installation and lower material costs compared to soldier pile or sheet pile walls.
- Minimal site disruption: Small drilling footprint makes soil nailing perfect for limited-space or adjacent to existing structures.
- Flexible design applications: Suitable for excavation support, slope stabilization, landslide repair, tunnel portals, bridge abutments, and more.
- Life-cycle durability: With proper corrosion measures, soil nail walls can last over 100 years.
Why Contractors Should Choose Williams
- Engineering expertise & tailored support
With over a century of anchoring experience since 1922, Williams offers a full engineering service — including drawings, calculations, testing tools, and on-site technical support. - Choice of top-tier soil nail systems
- Solid All-Thread Bar: Durable and precisely threaded.
- Geo-Drill Hollow Injection: Efficient for difficult soils.
- Corrosion protection systems: Tailored to soil chemistry and project lifespan.
- Custom design flexibility
Our bars and couplers are compatible with shotcrete facings and structural attachments, while threading ensures strong grout-bar bonding. - Quality materials made in the USA
Our soil nails are manufactured domestically to stringent standards, ensuring reliability and prompt delivery. - Proven project success
Williams soil nails have been deployed on prestigious projects—from university athletics complexes to high-profile tunnel portals and site remediation around North America.
Conclusion
For contractors tackling slope stabilization, deep excavations, landslide repair, or underground support, Williams Form Engineering offers soil nail solutions that blend strength, efficiency, and durability. With robust product options, custom corrosion protection, engineering support, and high-quality American manufacturing, we’re your trusted partner from design through installation.
Ready to tackle your next earth‑retention challenge? Visit our soil nails page or contact your Williams rep to explore system configurations best suited to your project conditions.
